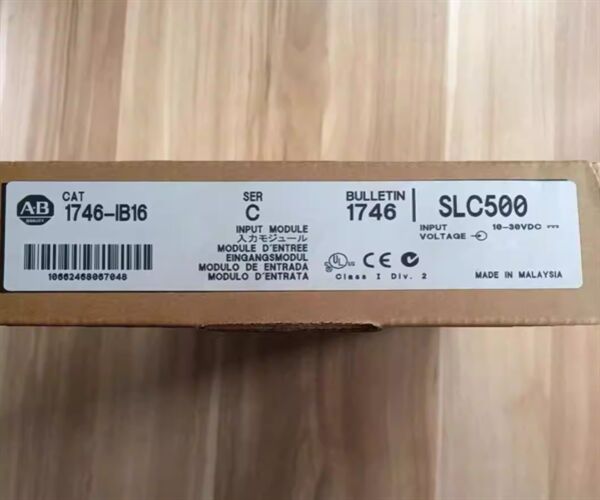

1746‑IB16 24VDC 16‑Channel Sinking Input Module

Allen‑Bradley 1746‑IB16 Digital DC Sinking Input Module (SLC 500 Series)

Core Features  of  1746‑IB16

• 16 Sinking Input Channels: 16 discrete input points rated at a nominal 24VDC, grouped into one input group with a single common terminal, enabling straightforward wiring and integration.
• Sinking Wiring Configuration: Compatible with a wide range of industrial devices, including limit switches, proximity sensors, pushbuttons, relay contacts, contactors, and other electronic components.
• Removable Terminal Block: Facilitates quick wiring, termination, and module replacement, minimizing downtime during maintenance.
• Status LED Indicators: Individual channel and module status LEDs for real‑time monitoring and troubleshooting, simplifying system diagnostics.
• Reliable Signal Transition: 8ms maximum signal delay for both ON and OFF transitions, ensuring consistent and predictable input response.

Technical Specifications of  1746‑IB16

Installation & Compatibility  of  1746‑IB16

• Mounting: Installs in any available I/O slot of the 1746‑Chassis, with installation quantity dependent on the SLC 500 CPU model and its I/O capacity.
• System Integration: Supports local installation in the same rack as the SLC 500 CPU or in distributed I/O chassis via 1746 communication adapters (Remote I/O, Ethernet).
• Programming: Configurable using Rockwell Software RSLogix for seamless integration with SLC 500 control systems.

Applications

• Industrial Automation: Monitoring and control in manufacturing lines, assembly processes, and material handling systems.
• Process Control: Interface with sensors and switches in chemical, pharmaceutical, and food processing industries.
• Building Automation: Integration with HVAC, lighting, and security systems for centralized control and monitoring.
