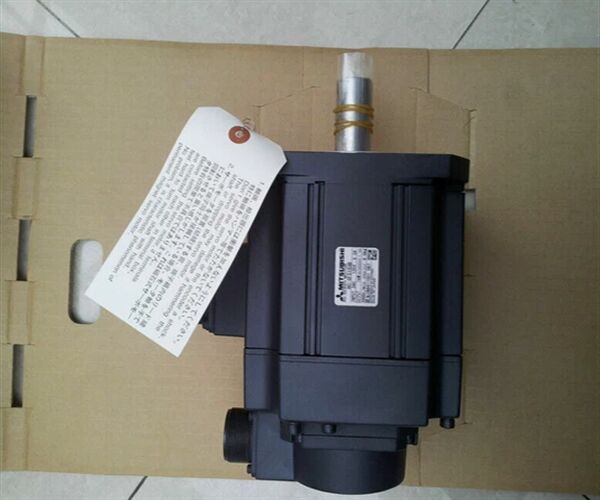

Mitsubishi HC-SFS103B Motors-AC Servo Motors, Automation Parts
16 slots for modular I/O and communication modules
Supports Modicon Quantum CPUs and compatible modules
Provides mechanical alignment and electrical bus connectivity for the rack
Designed for DIN rail or panel mounting in industrial enclosures
Industrial-grade construction for reliability in harsh environments
Factory automation, process control, and machine control systems
Building scalable PLC architectures with distributed I/O and communication modules
Core Specifications of HC-SFS103B
| Parameter | Details |
|---|---|
| Rated Output | 1 kW (1000 W) |
| Rated Voltage | 200 VAC class (3‑phase) |
| Rated Speed | 3000 rpm |
| Rated Torque | 3.18 Nm |
| Rated Current | 5.3 A |
| Peak Torque | 9.55 Nm |
| Encoder | 17‑bit absolute (131072 ppr) |
| Brake | Built‑in electromagnetic |
| Shaft | Straight shaft with oil seal |
| Mounting | 130×130 mm flange |
| Protection | IP65 (dust‑tight, water‑jet resistant) |
| Operating Temp. | 0–40 °C |
Key Features of HC-SFS103B
Precise Positioning: 17‑bit absolute encoder enables accurate, repeatable positioning without homing on power‑up.
Medium Inertia: Balances responsiveness and stability for dynamic load changes in high‑cycle applications.
Integrated Brake: Electromagnetic brake secures loads during power loss, critical for vertical axes or holding tasks.
Robust Build: IP65 protection and oil‑sealed shaft suit factory floors with dust, coolants, or washdowns.
Broad Compatibility: Works with MELSERVO J2S drives for seamless integration into existing setups.
